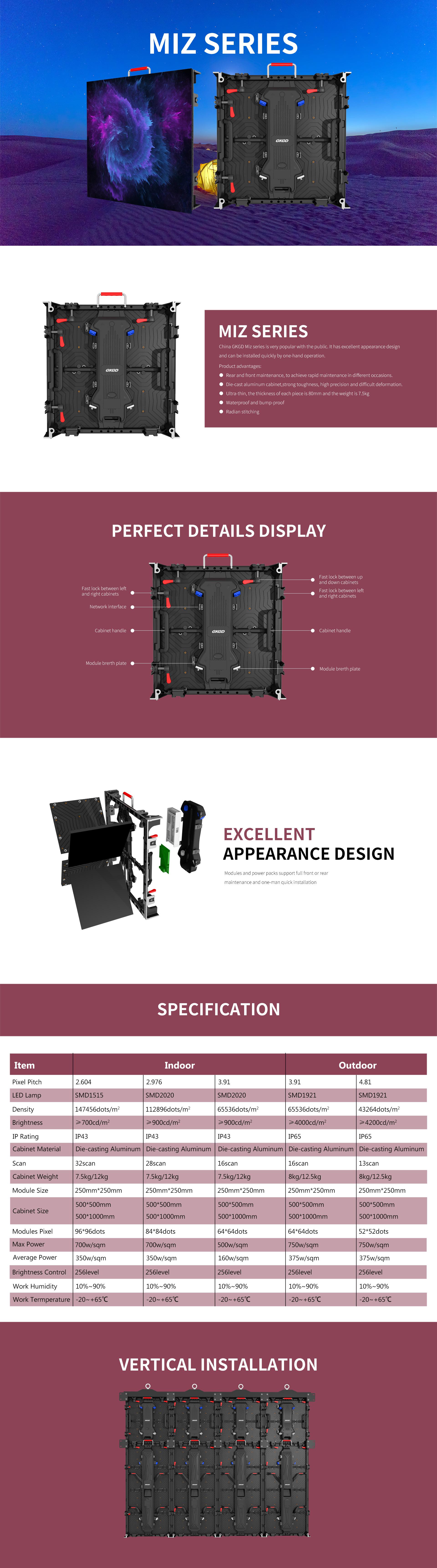

MIZ Series

High cost-effective.
Quick positioning pins on the left and right of the cabinet.
Structural mechanics design easy to install by one person.
Simple design inspires infinite creative inspiration on the stage.

Κατηγορία:
LED Lamp
Type SMD2121 black body
Brand Epistar
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 4mm
Module Size 256 × 128mm
Module Resolution 64×32=2048(Dots)
Module Weight 0.13kg
LED Cabinet
Pixel Density 62500 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 128×128=16384(Dots)
Input Voltage AC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D) 512 × 512 × 95mm
Output Voltage DC-5V, 40A/60A/80A
Quanty Module / Cabinet 2×4=8(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 8kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >1300cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 140(Horizontal), 140(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 7m
Protection Level(front/back) IP43 / IP54
Power Consumption (Max) 1000 w/sqm
Power Consumption (Average) 300 w/sqm
Malfunction Dot Rate less than 0.0001
Working Temperature -15oC-50oC
Display Function Text, Graphics, Video
Humidity 15% -85%
Refresh Rate >800Hz
Drive Mode/Driver Position Constant driving 1/16 Scan, Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10, Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)
