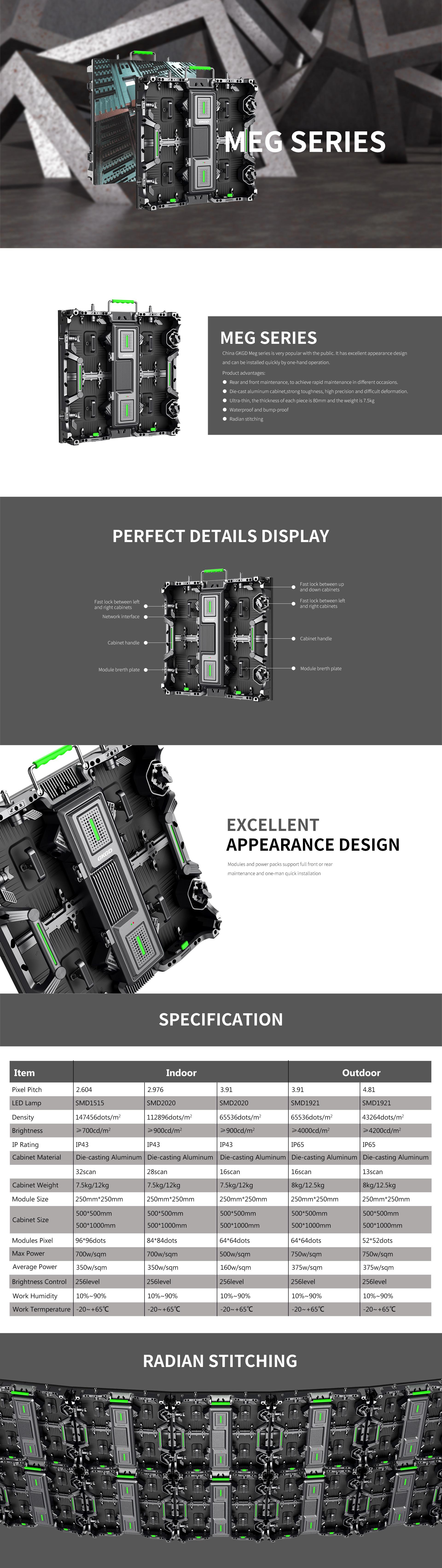

MEG Series

LED Lamp
Type SMD2121 black body
Brand Epistar
Arrangement 1R1G1B
Chip parameters Red (620-625 nm) IV: (250-300 mcd)
Chip parameters Green (520-525 nm) IV: (450-550 mcd)
Chip parameters Blue (470-475 nm) IV: (100-120 mcd)
LED Module
Pixel Pitch 5mm
Module Size 320 × 160mm
Module Resolution 64 × 32 = 2048 (Dots)
Module Weight 0.4kg
LED Cabinet
Pixel Density 40000 Dots / sqm
Frame Frequency no less than 60 frames / sec
Cabinet Resolution 128 × 128 = 16384 (Dots)
Input Voltage AC110-220V ± 10%, 50 / 60Hz
Cabinet Dimension (W * H * D) 640 × 640 × 95mm
Output Voltage DC-5V, 40A / 60A / 80A
Module Quanty / Cabinet 2 × 4 = 8 (PCS)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R (1024) × D (1024) × B (1024)
Cabinet Weight 10kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically
Brightness > 1500CDs / sqm
Mean time between failures (MTBF) 5000 hours
Viewing Angle 140 (Horizontal), 140 (Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 8m
Protection Level (front / back) IP43 / IP54
Power Consumption (Max) 800 w / sqm
Malfunction Dot Rate less than 0.0001
Power Consumption (Average) 250 w / sqm
Working Temperature -15 o C-50 o C
Display Function Text, Graphics, Video
humidity 15% -85%
Refresh Rate > 1000Hz
Drive Mode / Driver Position Constant driving 1/16 Scan, Combined diver board
Control System
Control Mode Synchronization / asynchronization
Input Signal AVI / MPG / MPEG / txt.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10, Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI (Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI (Sold separately)
