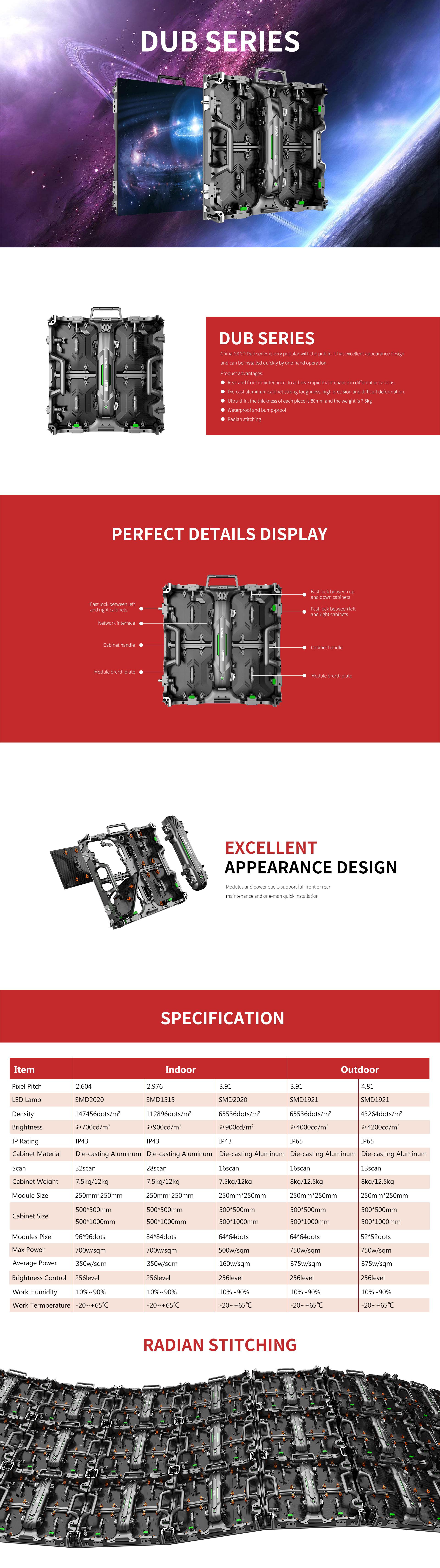

DUB Series

Design for front and rear maintenance.
Easy installation.
Multiple size splice.
Humanized curved design.
Thin and light design.

Κατηγορία:
LED Lamp
Type SMD3528
Brand Epistar
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 10mm
Module Size 320 × 160mm
Module Resolution 32×16=512(Dots)
Module Weight 0.4kg
LED Cabinet
Pixel Density 10000 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 64×64=4096(Dots)
Input Voltage AC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D) 640 × 640 × 95mm
Output Voltage DC-5V, 40A/60A/80A
Module Quantify /Cabinet 2×4=8(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 8kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >900cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 140(Horizontal), 140(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 13m
Protection Level(front/back) IP43 / IP54
Power Consumption (Max) 600 w/sqm
Malfunction Dot Rate less than 0.0001
Power Consumption (Average) 200 w/sqm
Working Temperature -15oC-50oC
Display Function Text, Graphics, Video
Humidity 15% -85%
Refresh Rate >1800Hz
Drive Mode/Driver Position Constant driving 1/8 Scan, Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10 ,Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)
