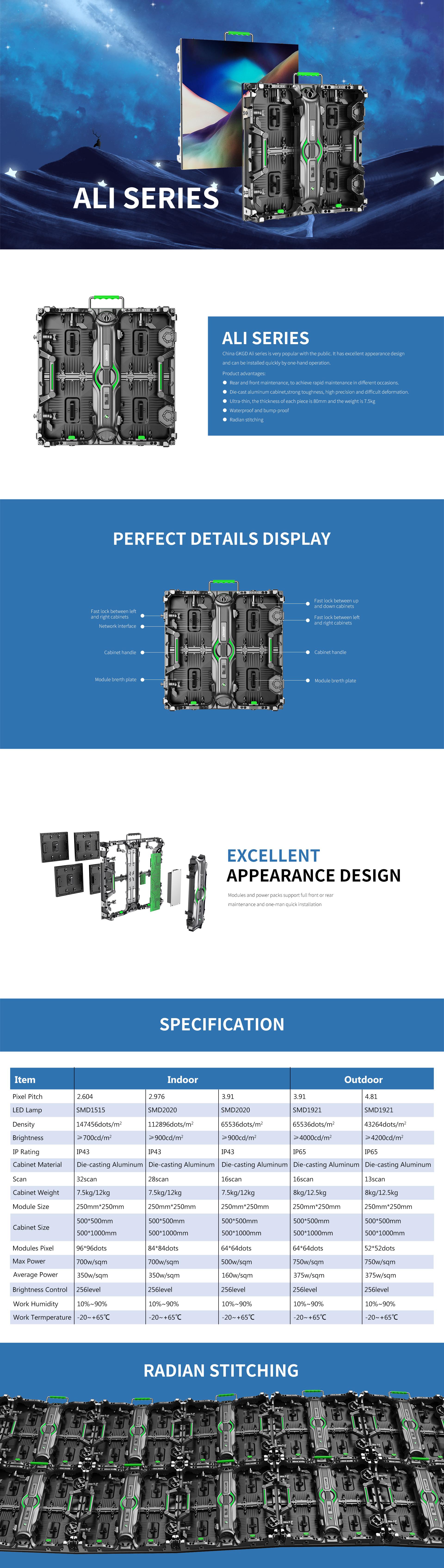

ALI Series

Double row pinhole design.
High precision arc.
Front and rear maintenance.
Anti-collision design of the cabinet.
Die-casting aluminum cabinet modular design.
Independent maintenance.



Κατηγορία:
LED Lamp
Type SMD3528
Brand Epistar
Arrangement 1R1G1B
Chip parameters Red (620-625nm) IV:(250-300mcd )
Chip parameters Green (520-525nm) IV:(450-550mcd)
Chip parameters Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch 6mm
Module Size 192 × 192mm
Module Resolution 32×32=1024(Dots)
Module Weight 0.25kg
LED Cabinet
Pixel Density 27777 Dots/sqm
Frame Frequency no less than 60 frame/sec
Cabinet Resolution 96×96=9216(Dots)
Input Voltage AC110-220V±10%, 50/60Hz
Cabinet Dimension(W*H*D) 576 × 576 × 95mm
Output Voltage DC-5V, 40A/60A/80A
Quanty Module / Cabinet 3×3=9(Pcs)
Color Grayscale 16bit
Gray Scale per Color 65536 level
Cabinets Material Aluminum-magnesium alloy Cabinet
Color Processing R(1024)×G(1024)×B(1024)
Cabinet Weight 7.4kg
Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional
Brightness >2400cd/sqm
MTBF( mean time between failures) 5000 hours
Viewing Angle 140(Horizontal), 140(Vertical)
Life-span 100, 000 hours
Nearest Viewing Distance 9m
Protection Level(front/back) IP43 / IP54
Power Consumption (Max) 900 w/sqm
Power Consumption (Average) 260 w/sqm
Malfunction Dot Rate less than 0.0001
Working Temperature -15oC-50oC
Display Function Text, Graphics, Video
Humidity 15% -85%
Refresh Rate >1000Hz
Drive Mode/Driver Position Constant driving 1/8 Scan, Combined diver board
Control System
Control Mode Synchronization/Asynchronization
Input Signal AVI/MPG/MPEG/TXT.etc
Control System Sending Card, Receiving Card, Receiving HUB
PC Operating System Microsoft Windows 10 , Windows 7 and XP
Software LED Studio
Communication Type Net cable; 3G, WIFI(Sold separately)
Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate CE, ROHS, FCC, ISO9001, TUV
Control Card Input DVI, USB; RJ45, HDMI(Sold separately)
